Wall ties play a vital role in cavity wall construction by securing the outer brickwork to the inner leaf of the wall. Over time, particularly in older properties, wall ties can corrode and lose their structural effectiveness. When this occurs, the outer leaf of masonry becomes increasingly vulnerable to movement and structural failure.

Corrosion of Existing Wall Ties

The most common reason for wall tie replacement is corrosion. Many older properties were constructed using mild steel wall ties, which can deteriorate over time when exposed to moisture within the cavity.

As steel corrodes, it expands several times its original size. This expansion places pressure on the surrounding mortar joints, often resulting in horizontal cracking, lifted brickwork, and visible signs of distress within the masonry. As corrosion progresses, the wall ties gradually lose their strength and ability to securely connect the two leaves of the cavity wall.

Black Ash Mortar and Accelerated Deterioration

Properties constructed using black ash mortar can be particularly susceptible to wall tie corrosion. Black ash mortar often contains impurities such as sulphates, chlorides, and unburnt carbon from industrial waste products used during its manufacture.

These contaminants can create a more aggressive environment around embedded steel wall ties. Combined with moisture, they can significantly accelerate the corrosion process, leading to premature wall tie failure and an increased risk of structural defects.

Wind Loading and Exposed Gable Walls

Wind pressure is another significant factor affecting properties with failed wall ties. Gable walls and exposed elevations are constantly subjected to wind loading, particularly in coastal areas, elevated locations, and open countryside settings.

Where strong winds are funnelled down the side of a property, increased pressure can be exerted on the external brickwork. In these situations, wall ties play a critical role in transferring wind loads back to the main structure of the building.

When wall ties have corroded or failed, the outer leaf can become detached from the inner structure and may begin to bow or lean outward. Over time, repeated wind loading can cause progressive movement and, in severe cases, partial or complete wall collapse.

Structural Movement and Masonry Defects

As wall ties lose their effectiveness, the outer leaf of brickwork can begin to move independently of the inner wall. This movement often results in horizontal cracking, bulging elevations, displaced brickwork, and separation between the two leaves of masonry.

These defects are clear indicators that the wall may no longer be adequately restrained and should be investigated by a specialist wall tie surveyor.

Restoring Structural Integrity

Wall tie replacement is required when existing ties can no longer perform their intended function safely. Modern stainless steel remedial wall ties are installed to create a new structural connection between the inner and outer leaves of masonry, restoring stability and resistance to wind loading.

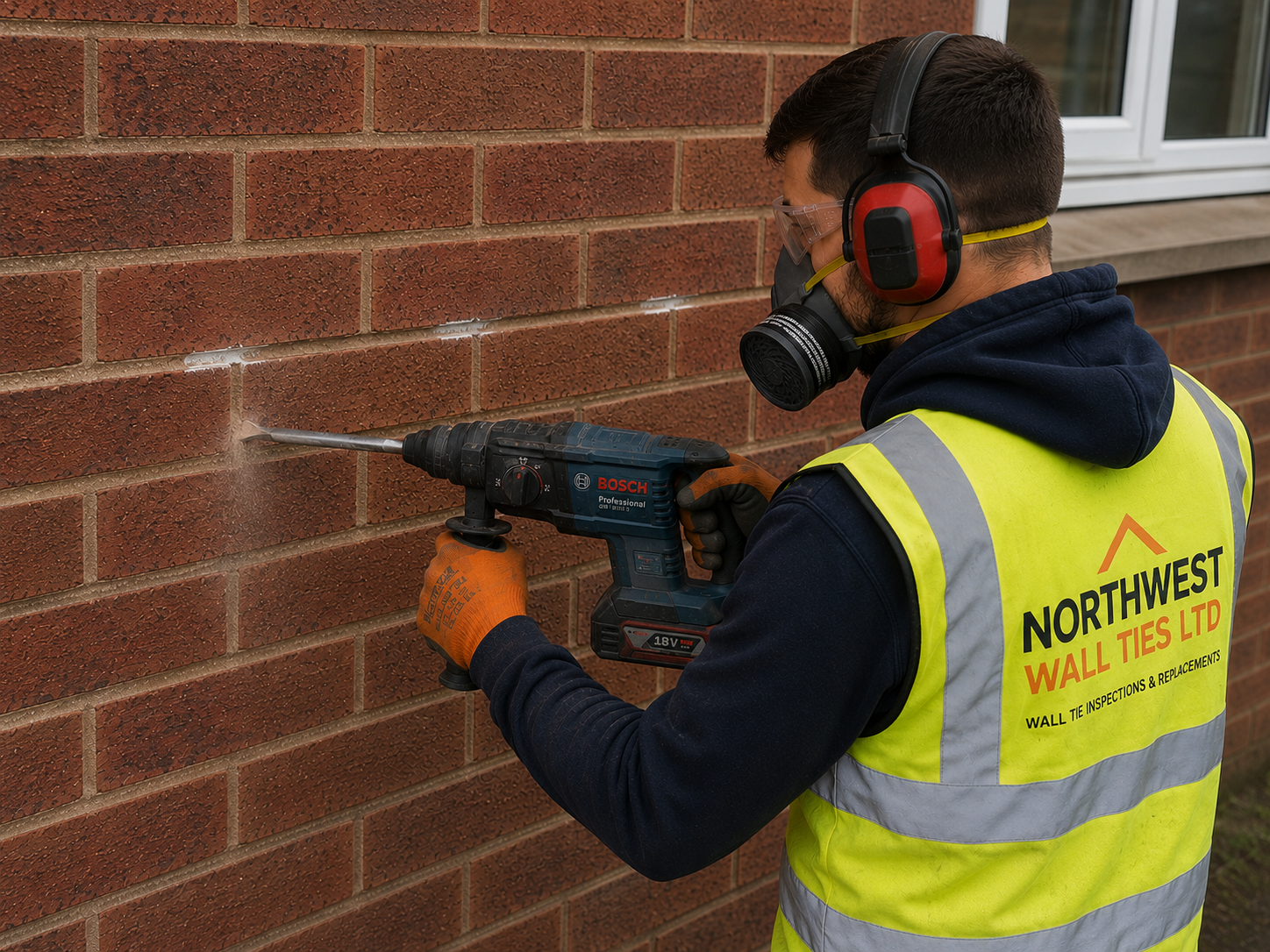

Following installation, the original corroded wall ties are isolated where necessary to prevent further expansion and damage. This ensures the wall remains secure while preventing ongoing deterioration of the surrounding brickwork.

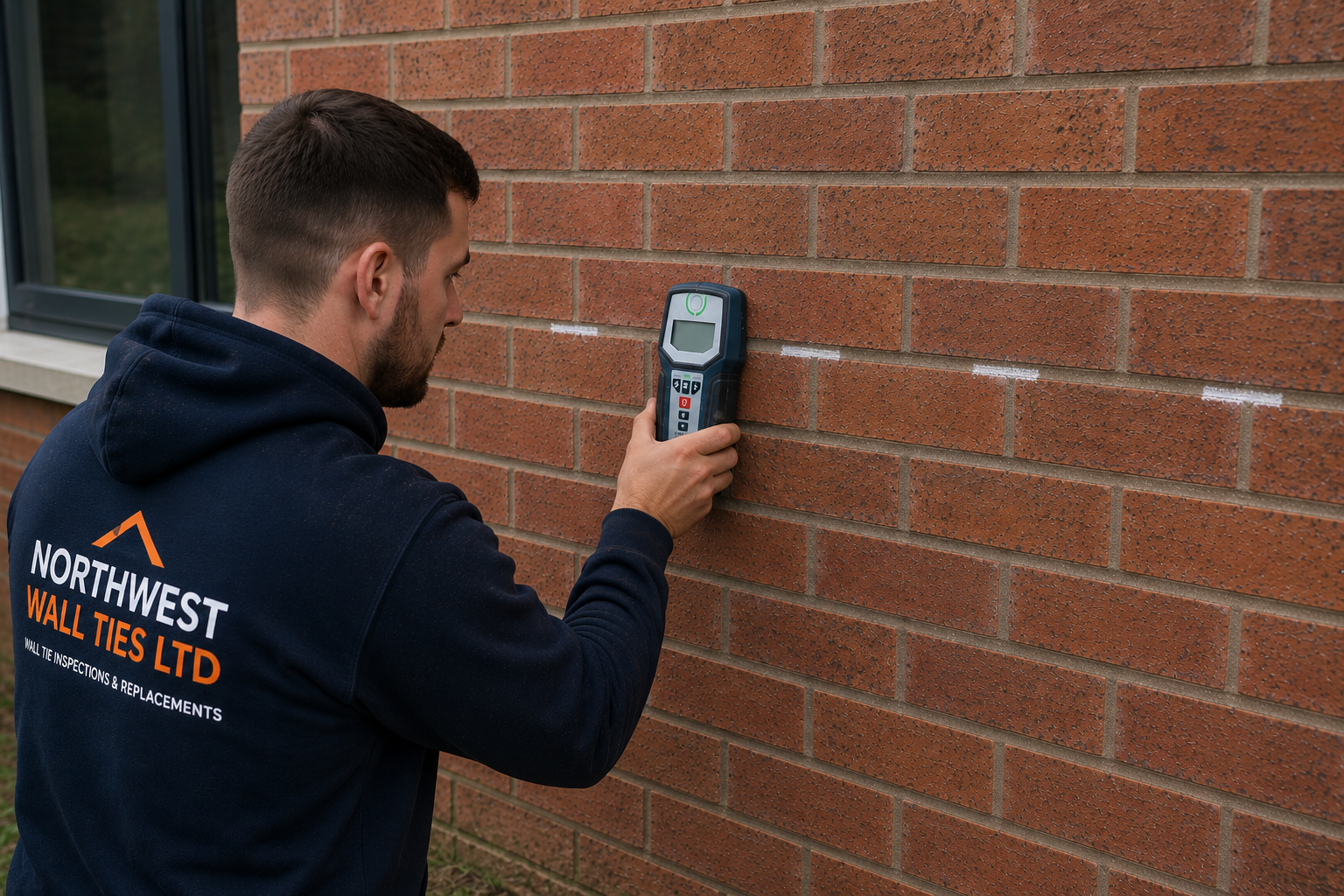

A professional wall tie survey can determine the condition of the existing ties and establish whether replacement is required, helping property owners address problems before more significant structural damage occurs.

The Importance of Early Wall Tie Replacement

Identifying and replacing failed wall ties at an early stage can help prevent more serious structural issues from developing. Wall tie corrosion is often a gradual process, and the first signs of failure may not be immediately visible without a specialist inspection.

When replacement is carried out promptly, it can prevent further expansion of corroded ties, reducing the risk of horizontal cracking, bulging brickwork, and movement of the external wall. Addressing the problem early also helps to minimise damage to the surrounding masonry, which can significantly reduce the extent and cost of future repairs.

In many cases, homeowners only become aware of wall tie issues once visible defects have appeared. However, by this stage, additional remedial works such as crack stitching, brick replacement, or rebuilding sections of masonry may be required alongside wall tie replacement.

A timely wall tie survey and replacement programme can help preserve the structural integrity of the property, protect its value, and provide reassurance that potential defects are being addressed before they develop into more costly and disruptive problems.

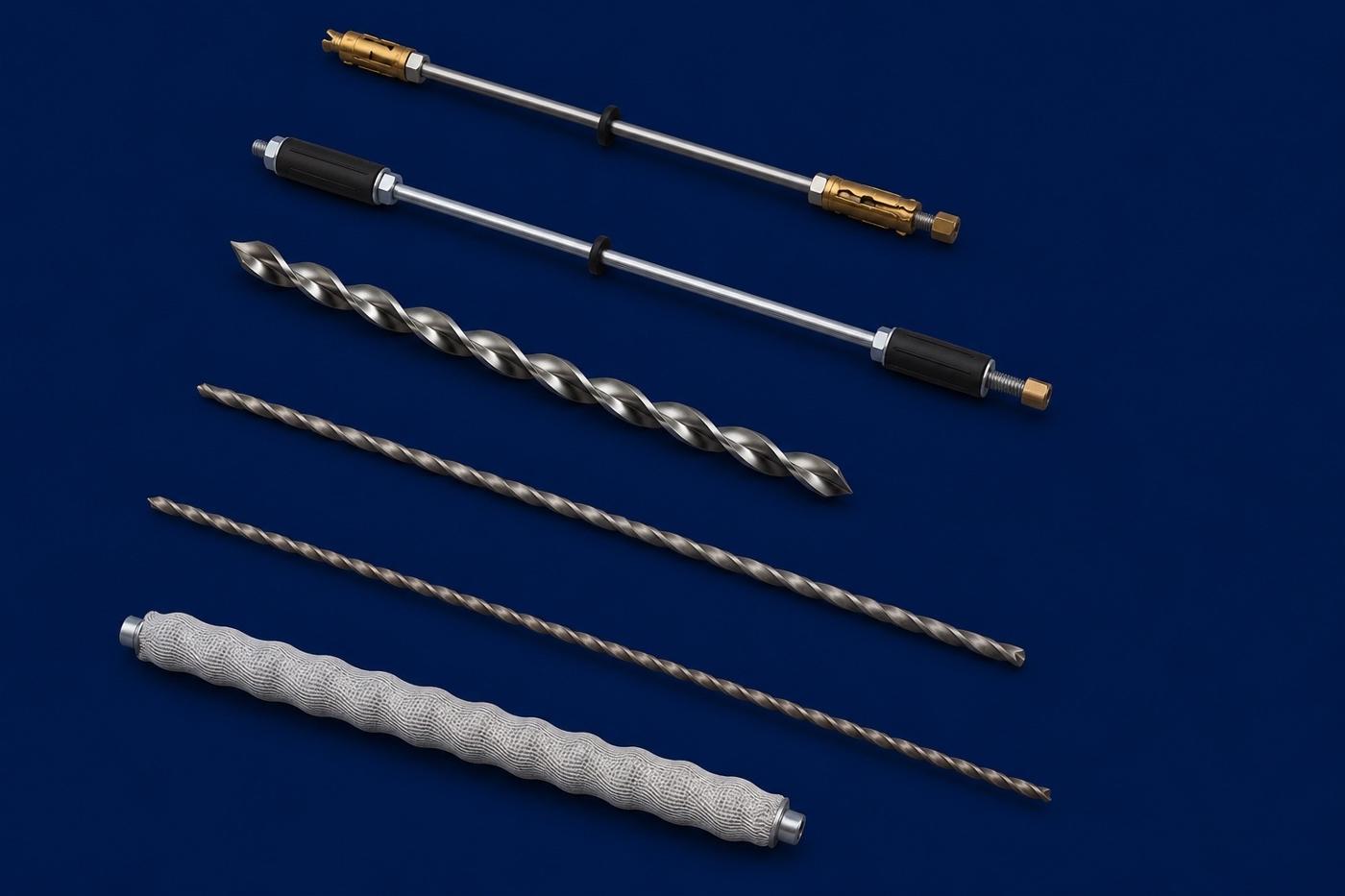

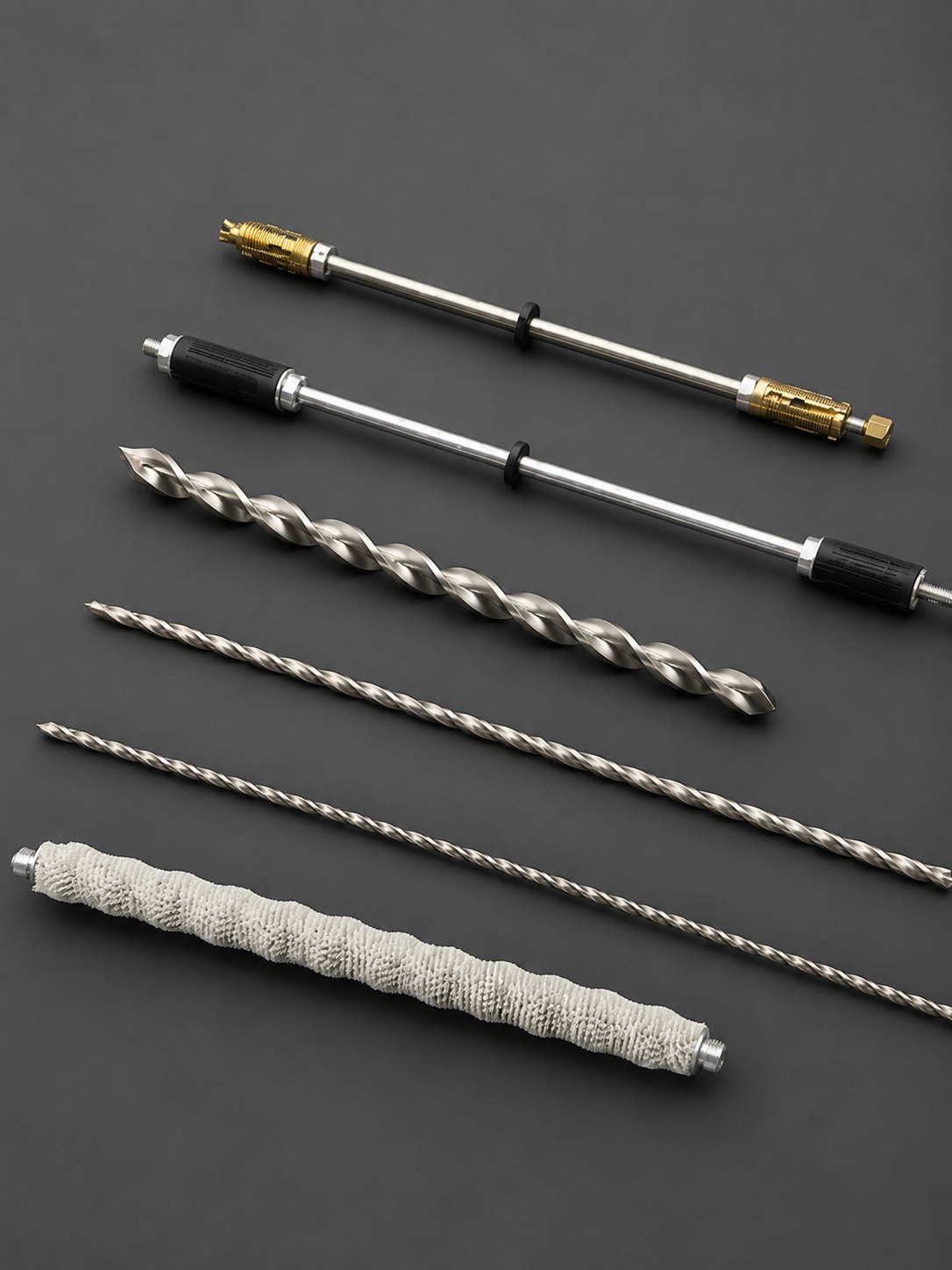

Not all remedial wall ties are the same. Different wall constructions, cavity widths, masonry types, and structural requirements often require different remedial fixing systems. Selecting the correct wall tie is essential to ensure the long-term stability of the structure and the effectiveness of the repair.

At Northwest Wall Ties, we carefully assess each property before specifying the most appropriate remedial wall tie system. We only install high-quality stainless steel products from leading manufacturers, allowing us to provide our clients with complete confidence and a 25-year guarantee on our wall tie replacement works.

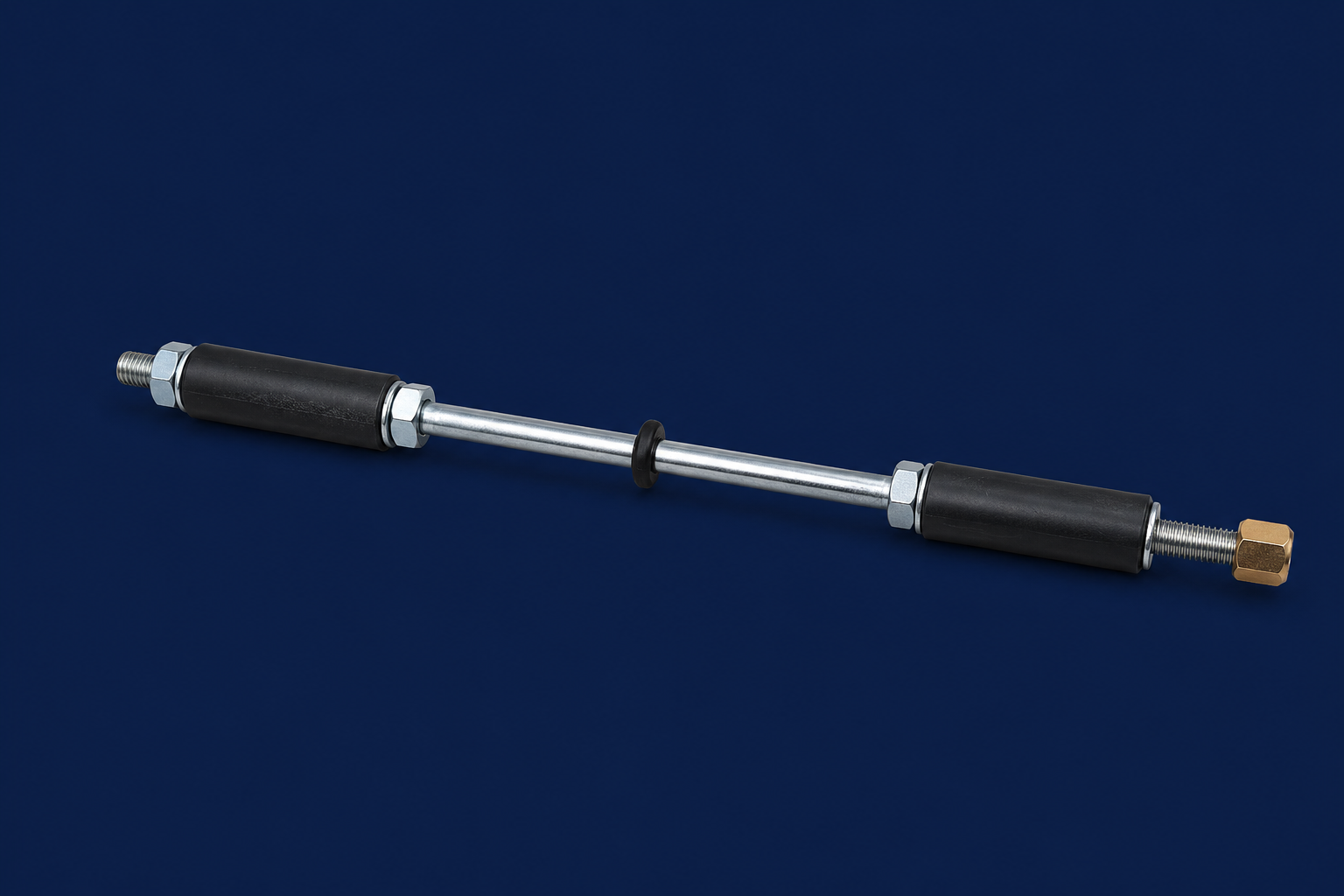

Mechanical Expansion Wall Ties (Neoprene Ties)

Mechanical expansion wall ties, often referred to as neoprene ties, are one of the most commonly installed remedial wall tie systems. These ties are mechanically fixed into both leaves of masonry using expanding sleeves or compression fittings.

The neoprene components help accommodate slight movement within the wall while maintaining a secure connection between the inner and outer leaves. These ties are particularly effective in sound masonry and can be installed with minimal disruption to the property.

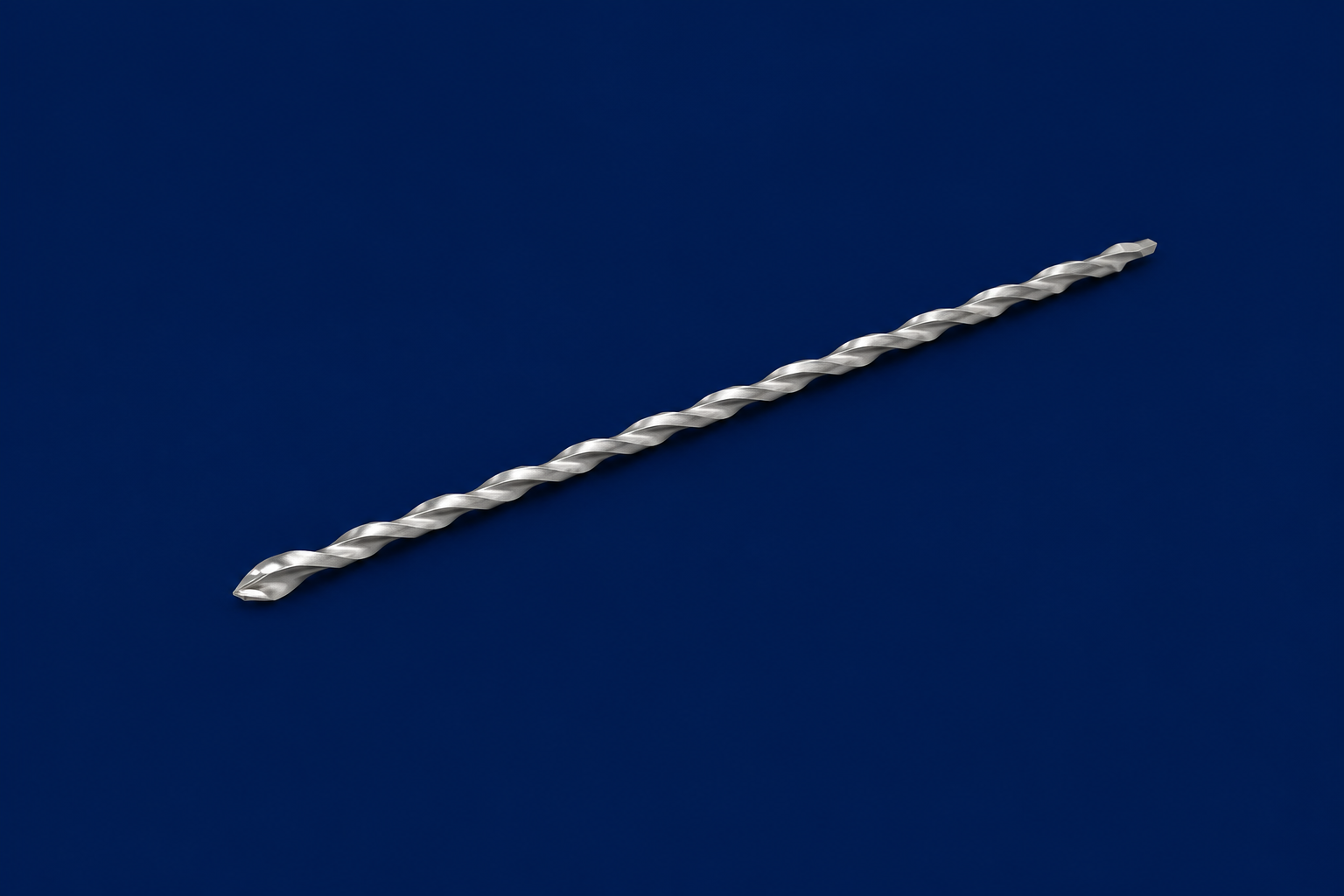

Drive-In Wall Ties

Drive ties are designed to be hammered directly into pre-drilled holes within both leaves of masonry. They rely on an interference fit to create a secure mechanical bond without the need for resin or expansion mechanisms.

Drive ties are often used where masonry is in good condition and can provide a fast and cost-effective solution. Their simplicity makes them suitable for many standard cavity wall constructions, although they are not always appropriate for weaker or more heavily deteriorated masonry.

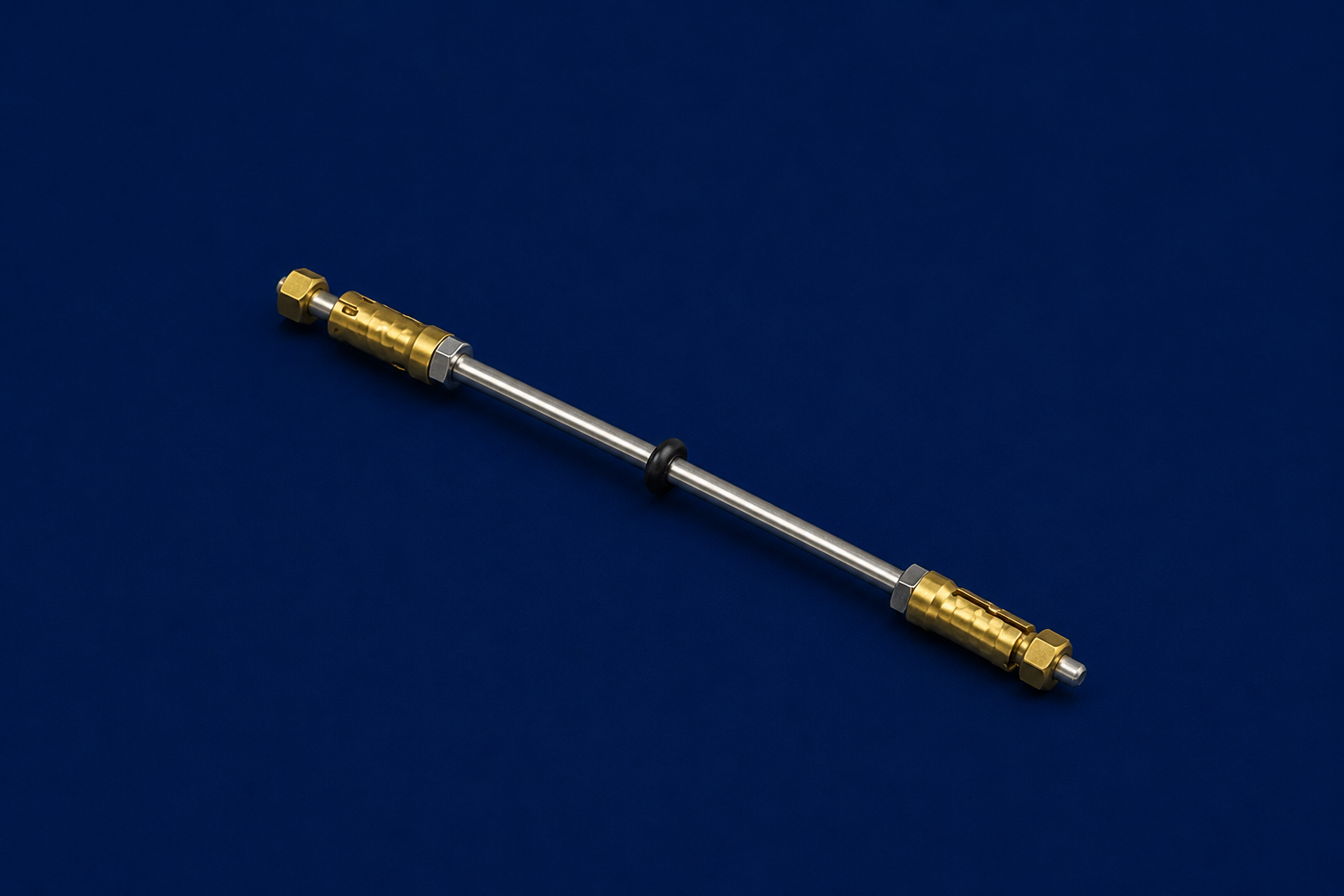

Brass Mechanical Wall Ties

Brass mechanical wall ties utilise brass expansion ferrules to create a secure fixing within the masonry. These systems have been used successfully for many years and can provide excellent load transfer when installed correctly.

Brass components offer good corrosion resistance and are often specified where particular fixing requirements exist. As with all remedial wall tie systems, suitability depends on the wall construction and condition of the masonry being repaired.

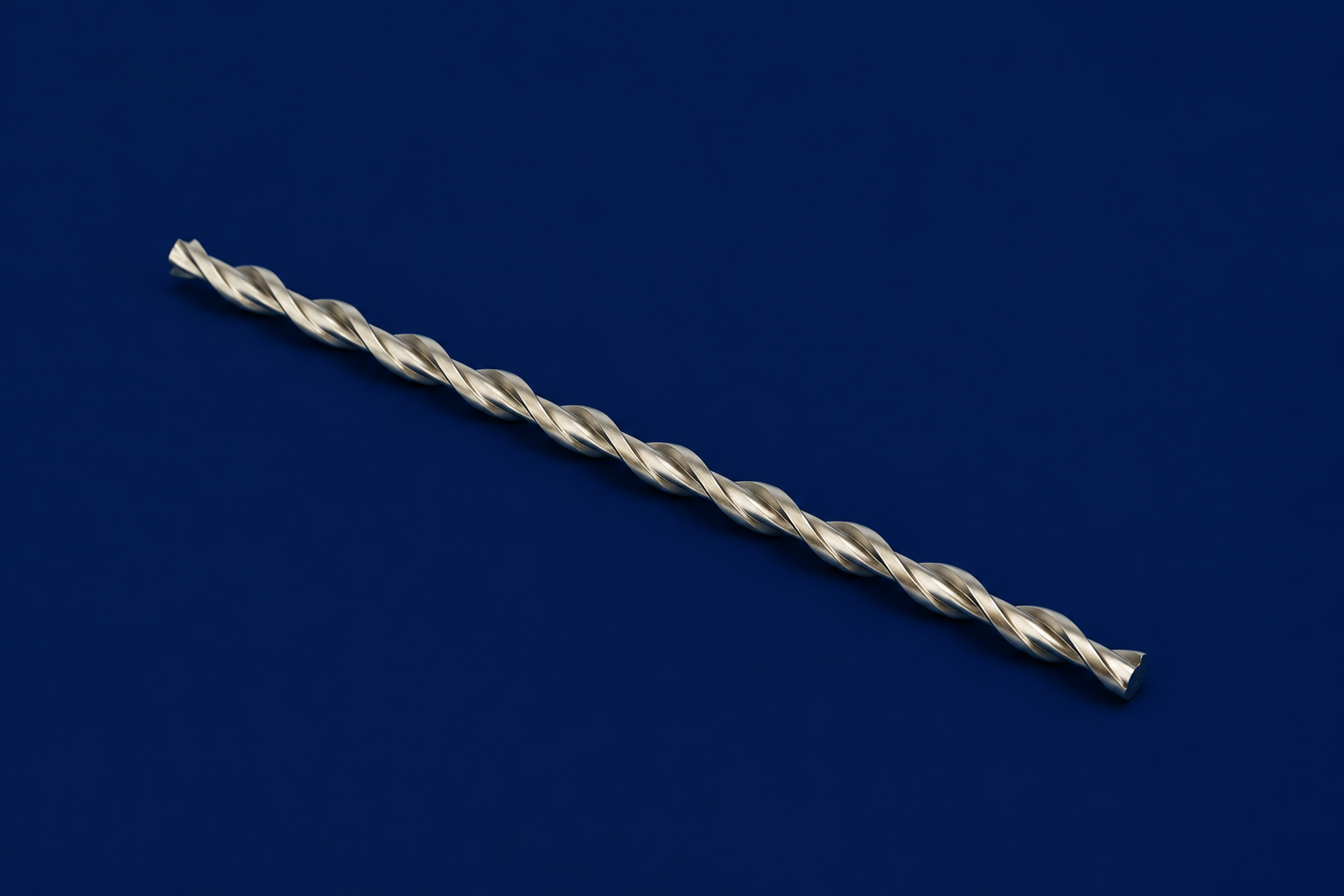

Resin Bonded Wall Ties

Resin wall ties are widely regarded as one of the most versatile remedial wall tie systems available. Rather than relying solely on mechanical expansion, these ties are chemically bonded into the masonry using specialist structural resins.

This method is particularly beneficial where masonry may be weaker, fractured, or unsuitable for expansion fixings. The resin creates a strong bond within the substrate, allowing loads to be distributed evenly through the wall. Resin-fixed ties are commonly specified for a wide range of remedial applications and can provide exceptional long-term performance when installed correctly.

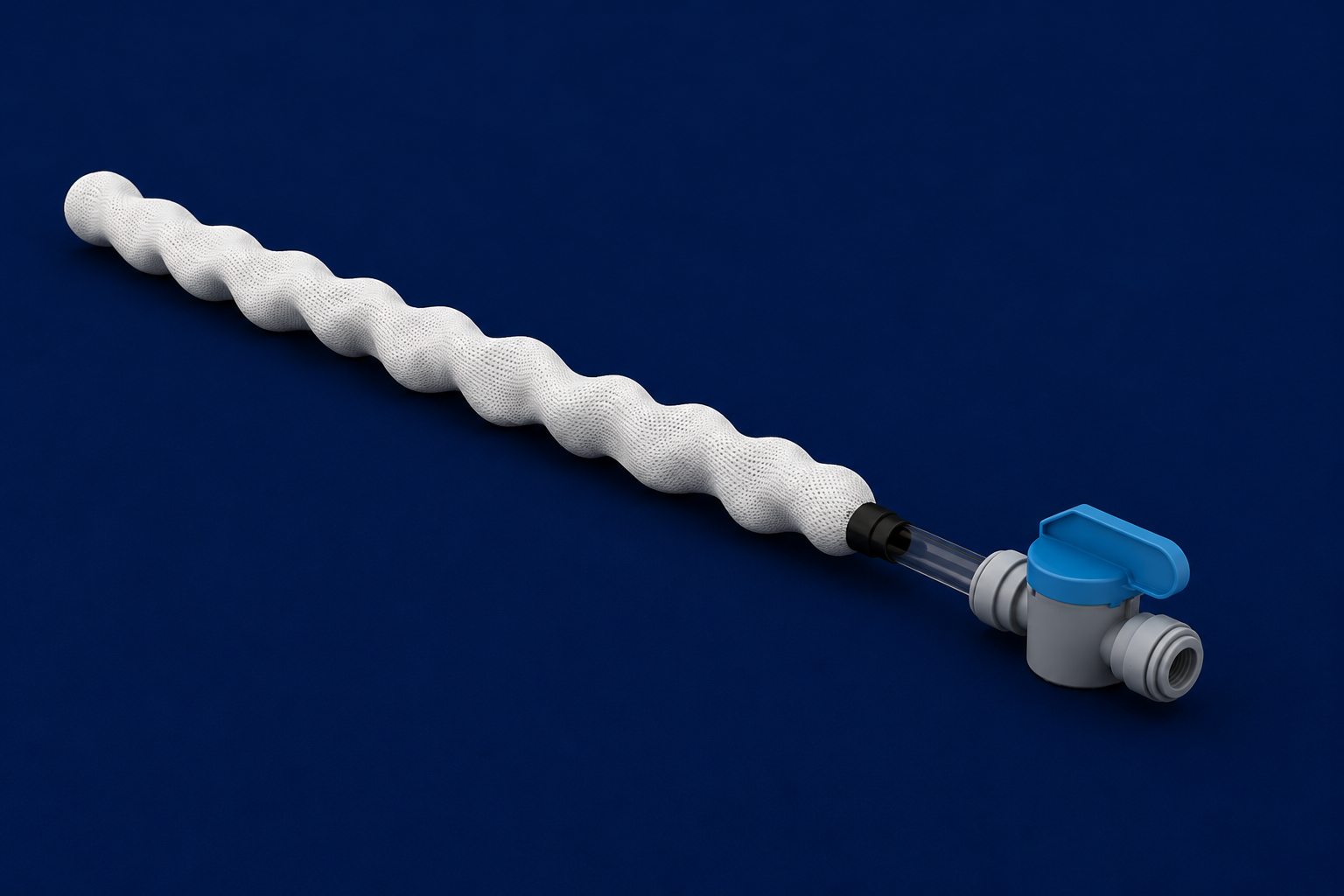

Sock Resin Wall Ties

Sock ties are a variation of resin-bonded wall ties and are specifically designed for use in hollow masonry, perforated bricks, lightweight blocks, or other substrates where conventional resin installation may be less effective.

A mesh sleeve, often referred to as a “sock”, is inserted into the drilled hole before the resin is injected. The sock contains the resin and ensures it forms a secure anchor within the masonry. This system provides a reliable fixing where standard mechanical ties or conventional resin installations may not achieve adequate performance.

Stainless Steel Grades Matter

One of the most important factors affecting the lifespan of a remedial wall tie system is the quality of the steel used. Not all wall ties are manufactured from the same grade of stainless steel, and lower-grade products may offer reduced corrosion resistance in certain environments.

Properties located in coastal areas, exposed locations, or buildings constructed with black ash mortar can place increased demands on remedial wall ties. For this reason, we only install premium-grade stainless steel wall ties that meet the highest industry standards for durability and corrosion resistance.

Our Commitment to Quality

At Northwest Wall Ties, we never compromise on the quality of the materials we install. By using market-leading remedial wall tie systems manufactured from high-grade stainless steel, we can provide repairs designed to last for decades.

This commitment to quality, combined with our specialist installation methods and thorough surveying process, allows us to offer a comprehensive 25-year guarantee on our wall tie replacement works, giving homeowners complete confidence in the long-term stability and safety of their property.

Selecting the Correct Remedial Wall Tie

Every property is different, which is why there is no single wall tie suitable for every installation. During our wall tie survey, we assess a number of factors including cavity width, wall construction, masonry type, exposure conditions, the condition of the existing wall ties, and the structural requirements of the building.

Using this information, we determine the most suitable remedial wall tie system, the correct tie length, fixing method, spacing, and stainless steel grade required for the property. This ensures the replacement wall ties achieve the necessary load capacities while providing long-term durability and structural performance.

As part of the specification process, pull-out testing may also be carried out to establish the strength of the masonry and confirm which remedial wall tie system is most appropriate for the building.

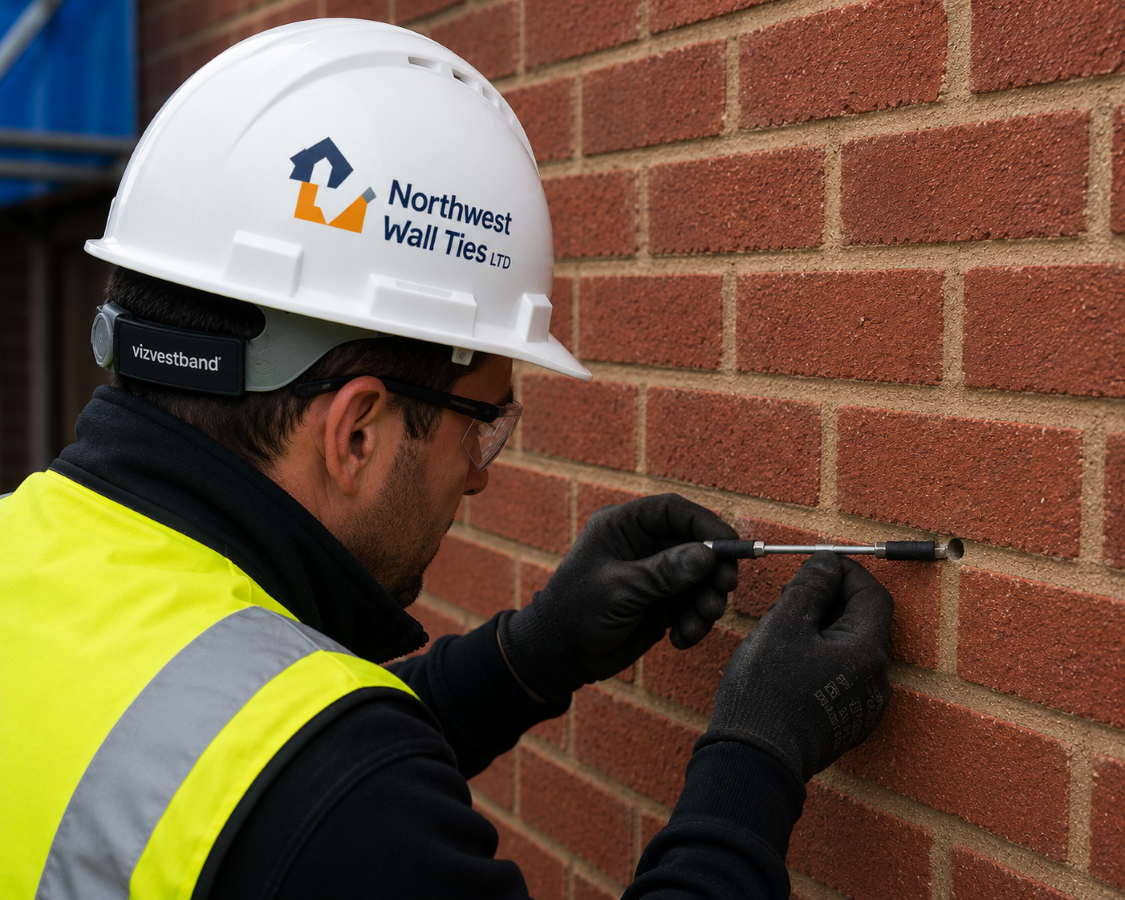

Discreet Installation and Pull-Out Testing

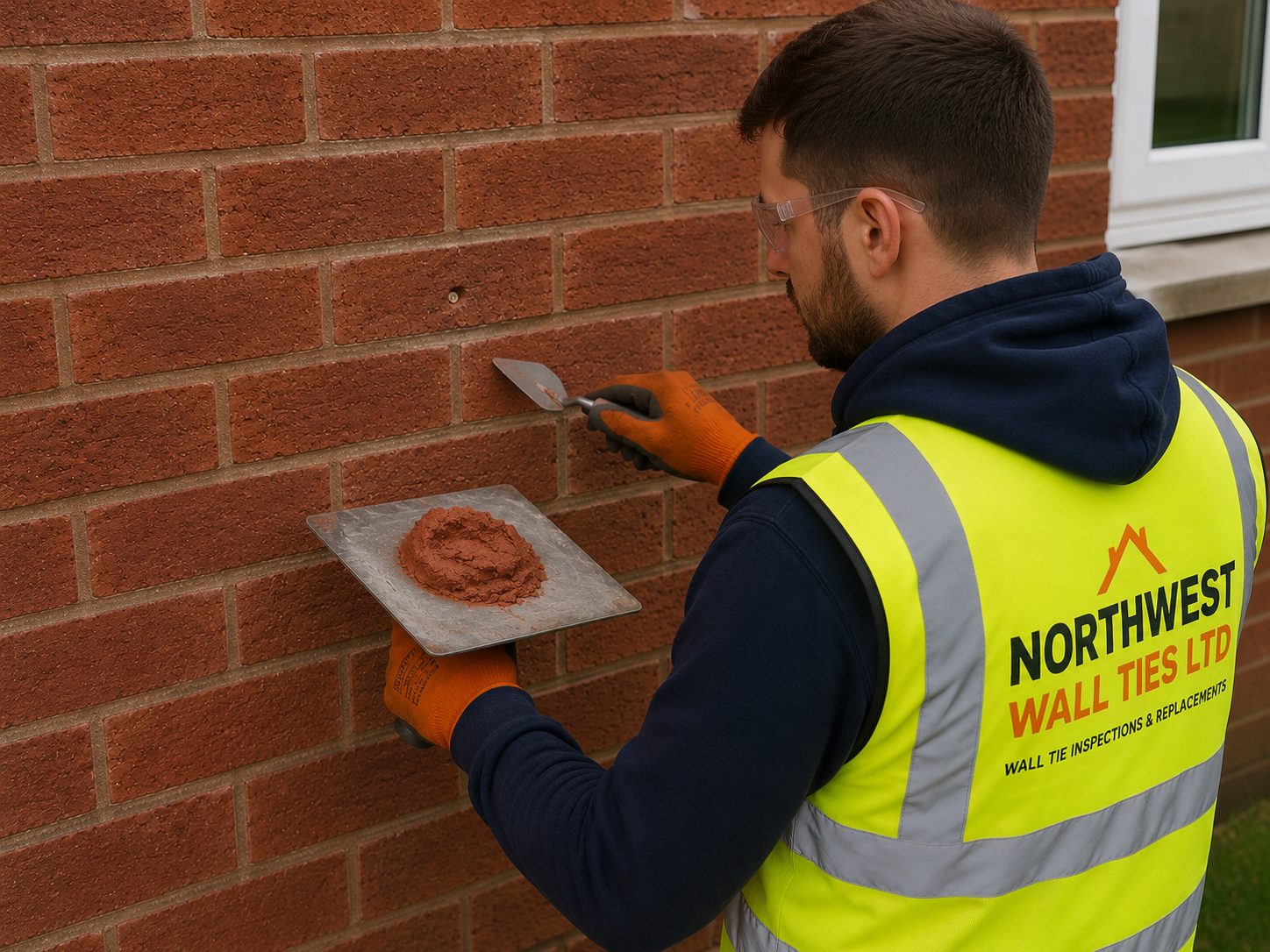

Wherever possible, we install replacement wall ties through the mortar bed joints rather than directly through the bricks. This allows the installation holes to be carefully colour-matched and pointed, helping to minimise any visible signs of the remedial works and preserve the appearance of the property.

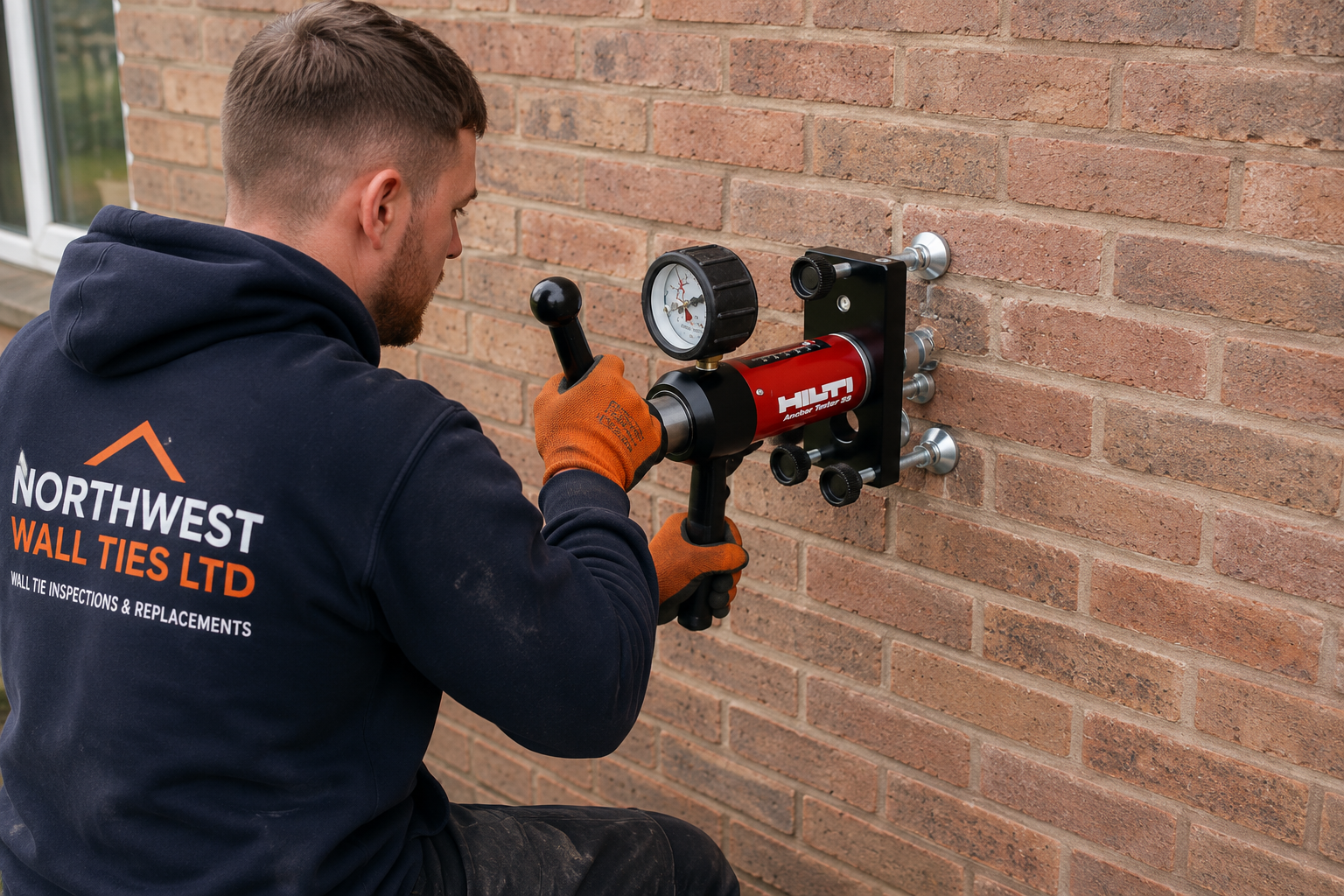

However, the suitability of mortar bed installation depends entirely on the strength and condition of the existing mortar. During installation, pull-out testing is performed to ensure the masonry can achieve the required loadings and comply with industry standards.

If the mortar is found to be weak, friable, or unable to achieve satisfactory pull-out test readings, installation through the mortar joints may not provide adequate structural performance. In these circumstances, the safest and most effective solution is often to install the remedial wall ties directly through the centre of the bricks, where significantly higher fixing strengths can usually be achieved.

While we always aim to minimise the visual impact of our work, structural performance and long-term safety will always take priority. Our surveyors and technicians will explain the most appropriate installation method for your property and the reasons for any recommendations made.
